제품 상세 정보:
|
| 애플리케이션 :: | 모든 전기 지역 | 핀 :: | 한 개의 /double 핀 |
|---|---|---|---|
| 재료 :: | 폴리카보네이트, 인청동, 그레아스 | 포장되는 것 :: | 카톤 박스 |
| 색 :: | yellow/red/blue/green | 타이핑하세요 :: | 철사 연결관 |
| 종결 :: | K2 | 정격 전압 -:: | 32V |
| 하이 라이트: | Connector,32V 와이어 스플라이싱 연결기를 접합하여 연결기,폴리카보네이트 와이어를 접합하는 UY2 전자 와이어 |
||

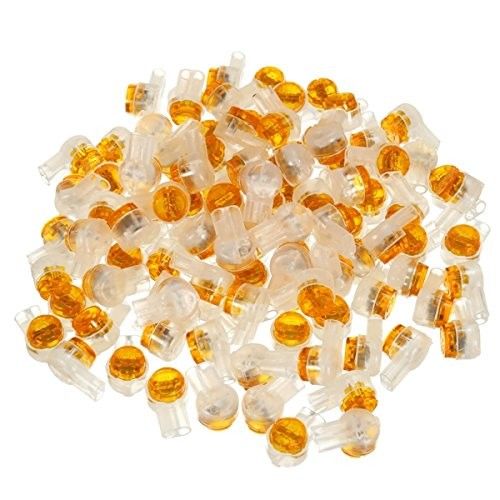

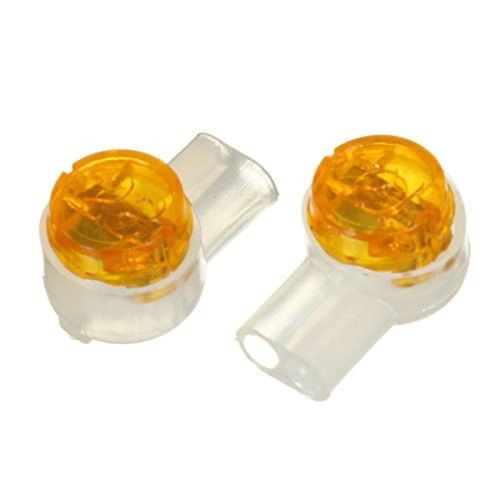

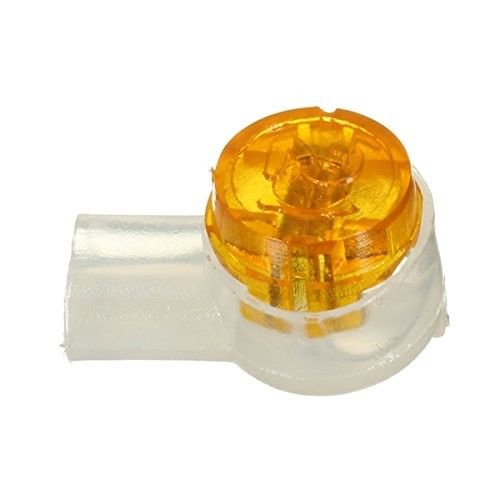

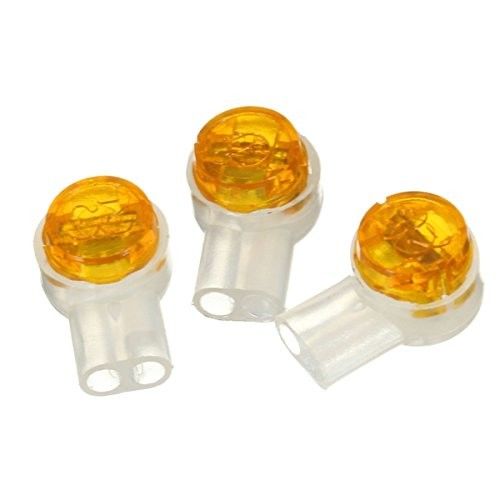

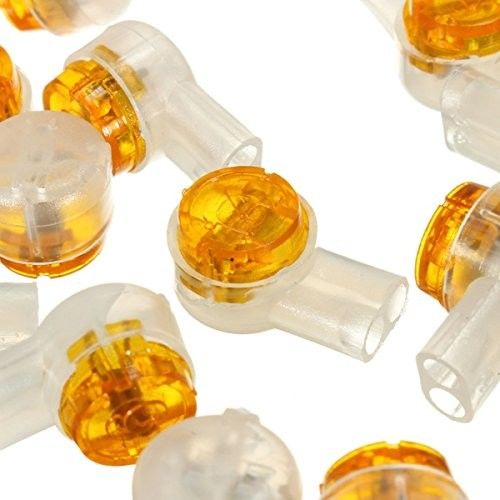

UY2 Connector Electronic Wire Connector UY Wire Splicing Connector
UY2 Lock Joint Connector for Wire Connection
Feature
1.HJKT2 WireConnector, two wire inline joints on telephone drop wire of phosphor
bronze with plated tin conductors, which will be suitable for crimping tool shown.
2.All materials is suitable for operation in the tropic with maximum temperature up to 80oC.
3.All materials used in the connectors shall be non-toxic and dermatologically safe.
4.Connectors can retain the electrical & mechanical properties in the test report over working temperature
range -30oC to 70oC and humidity range of 0% to 95%.
Detail
| Product Type | UY2 |
| Wire Type | 1 wire or 2 wire |
| Gender | Female |
| Materials | Polycarbonate, Phosphor bronze,Grease |
| Certification | CE/ROHS/ISO9001/ANATEL |
| Color | Orange Lid,Transparent Bottom |
The wire connectors includes a variety of butt splices and inline tap splices.The IDC butt splices in the Series employ a specially designed wire insulation displacement contact to make a reliable electrical connection to each wire. A "live-spring" joint is made by driving the wire down into the "U" contact connector. This simple process displaces the insulation and grasps all conductors with a firm, resilient pressure, all in one motion. These connectors include a factory installed sealant to protect against corrosion and seal out moisture.
The Series in-line tap wire splices are real time savers. They enable the user to tap into another wire without interrupting service. A U-shaped element inside each connector displaces insulation material and makes contact with the copper conductor. These wire splices also include factory-installed sealant to protect against corrosion and seal out moisture. Tap connectors are fast to install, easy to work with and available in a wide range of common wire gauges.
Tap connectors allow direct tapping into existing solid copper conductors without interrupting service. The pre-crimp feature helps hold the wires in place until the connector is crimped and the splice is complete.
