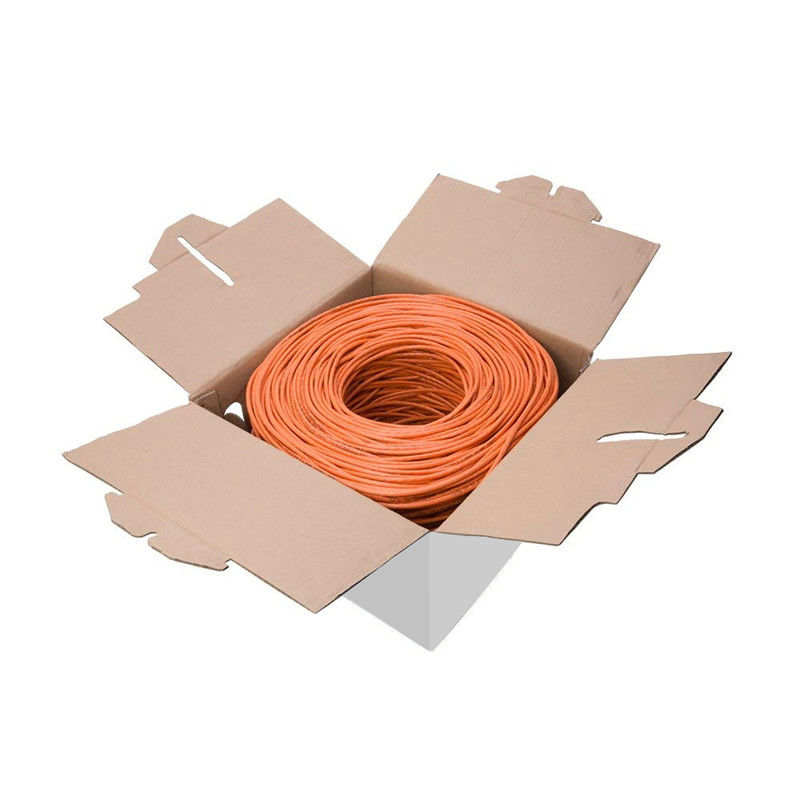

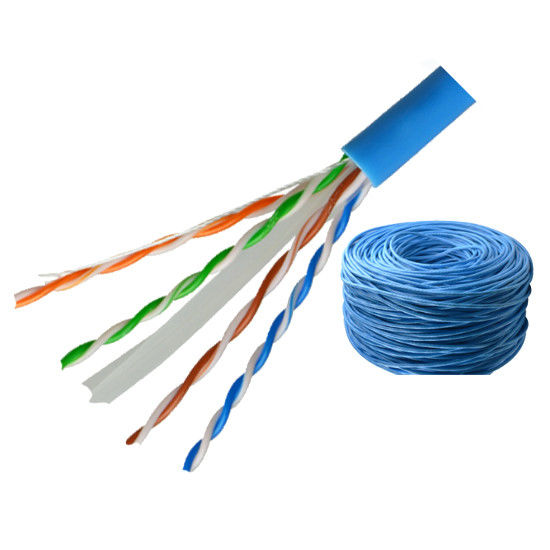

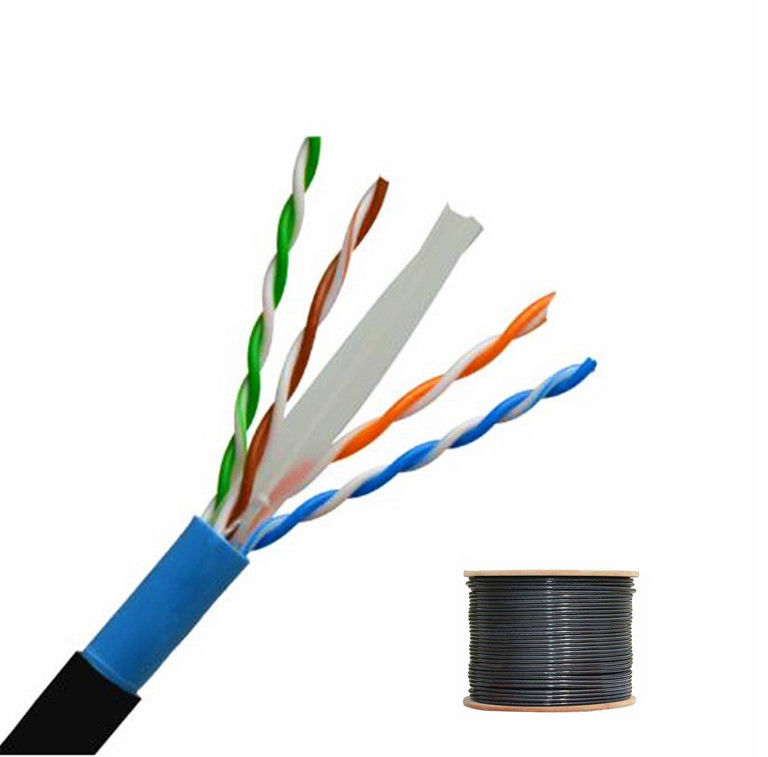

24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable

24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable
24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable 24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable 24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable 24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable

큰 이미지 :  24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable

제품 상세 정보:
원래 장소: 광동, 중국
브랜드 이름: YUEXIANKE/OEM/ODM
인증: Unilever/ROSH/CE/ANATEL/CPR/ETL
모델 번호: CAT6
결제 및 배송 조건:
최소 주문 수량: 고객의 요구로서의 주가가 타입 30000 미터를 특화했습니다.
가격: Negotiation
포장 세부 사항: 외부 패키지 : 카턴 케이스
배달 시간: 7-15 영업일
지불 조건: 서부 동맹, T/T, MoneyGram
공급 능력: 100은 하루에 / 박스를 권투합니다, 샘플이 이용 가능합니다

24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable

설명
전도체 물질 :: 벌거벗은 구리 길이 :: 305m/1000ft
색 :: 주문 제작됩니다 포장되는 것 ::
보호하세요 :: FTP 재킷 :: 새로운 PVC
외부 직경:: 5.4± 0.01 밀리미터 뒤틀린 쌍 :: 휘어진 4 쌍
관리인 :: 고체 구리 대역폭 :: 최고 550까지 마하즈.
대역폭 :: 최고 550까지 마하즈. 타이핑하세요 :: 원격 통신 케이블
타이핑하세요 :: 원격 통신 케이블
하이 라이트:

305M Network LAN Cable

,

24AWG Network LAN Cable

24AWG Shield 305M Roll Pure Copper FTP Cat 6 Cable 4 Pair Cat6 Cable



Advantage

1. With 20 years of production experience, we have mastered the most advanced and mature technology in this field.

2. With stable production ability, we product 500,000 meters per day

3. With a good reputation and numerous customers both at home and overseas 4. With good quality with factory price.

Product Name
Cat 6 Network Cable
Type
Cat 6/Cat 6a
Conductor Material
OFC/BC/CU/CCA/CCS
Conductor Size
23AWG
NO. of Conductor
4P/8C
Insulation Material
PE , HDPE
Jacket
PVC/ ROHS PVC /LSZH PVC
Shield
Unshield/ Shield
Indoor /Outdoor
PVC(Indoor) /PE(Outdoor)
Insulation Thickness
0.2 MM
Jacket Thickness
0.92-0.95 MM
Operating Temperature
-20~70 ℃
Max.Capacitance Unbalance(pF/100m)
≤330pF /100M(Per TIA/EIA-5688.2)
≤60pF/100(Per IEC 61156)
Nominal Velocity of Propagation
72%
Max.Delay Skew(ns/100m)
≤45ns/100m
Max.Conductor DC Resistance 20Deg.C
Max.Conductor DC Resistance 20Deg.C
Max.DC Resistance unbalance 20 Deg.C
Max.DC Resistance unbalance 20 Deg.C
≤2% (per IEC 61156)
Characteristic lmpedance(O) 4~100MHz
100±15
Operating Temp.Range
-20~70 ℃
Max.Recommended Pulling Tension
110N
Min.Bend Radius(lnstall)
8XO.D.
Flame Test
CM





24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable 024AWG Shield 305M Roll Pure Copper FTP Network LAN Cable 124AWG Shield 305M Roll Pure Copper FTP Network LAN Cable 2









2.Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliver our products by SEA. Other delivery methods are available upon request from clients.

24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable 3



3.Our service
1) Quick Response -- All inquiries will be replied within 24 hours.
Professional Quotation -- All pricing will be quote according to customers' detailed specifications & requirements.
2) OEM & ODM Service -- Can print your own brand on the cable printing with foot or meter marking. -- Make customized designs for stickers, drums, outer cartons, etc.
3) Stable Quality -- All materials and products passed restrict QC procedures, compliant with international standards.
4) Fast Delivery -- LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
5) Good After-sales Service -- We chose the fastest vessel to POD for delivery our goods to clients, -- All Documents will be issued according to clients' instructions, to save troubles from local customs. -- Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.





4.What is the process of an order?

Send your detailed request → Feedback with quotation → Confirm quotation and make payment → Make artwork for approval→Make mould→Mold testing→Making samples→Sample testing(Approval) →Mass production→Quality checking→Packing →Delivery →After Service→Repeat Order...

24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable 4



5. Good after-Sale Service.

1) All products will have been strictly Quality Checked in house before packing.

2) All products will be well packed before shipping.

5. Faster delivery

Sample order in stock, and 3-7 days for bulk production.

6. Shipping:

We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.





6.FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in dongguan city.

You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: May I buy samples from you?

A3: Yes! You are welcome to place sample order to test our superior quality and services.

Q4: What is your Warranty?

A4: All the products will have 12 months Warranty

Q5:What payment method do you accept?

A5:T/T(Bank transfer), , Money Gram, Paypal, etc.

Q6: Can you put my brand name (logo) on these products?

A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q7: May I know the status of my order?

A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q8: What’s the leading time? (How long do you need to prepare my goods?

A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

Q9: How will you deliver my goods to me?

A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q10: Can you provide us more other products to us to help us to save more shipping costs?

A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well



24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable 5


Our factory are professional manufacturer in producing Cat5e/Cat6 UTP/FTP/SFTP/STP network cable,Power cable,Coaxial cable,Telephone cable etc.
Welcome to visit our factory !
