Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors

인증
중국 Guangdong Jingchang Cable Industry Co., Ltd.  인증
중국 Guangdong Jingchang Cable Industry Co., Ltd.  인증
고객 검토
우리는 매우 당신과 협력하는 것에 기쁩니다. 당신의 좋은 서비스는 내가 충족하게 합니다! 분명히 프우테에서 더 명령할 것입니다.

—— -- 존 스미스요

상등품 좋은 서비스! 감동했어요.. 협력하는 것을 계속하세요!

—— -- 모하메드 레바이

나 그들의 사업이 점점 더 좋을 것이라고 이 company,I의 서비스에 매우 만족하는 오전이 믿습니다.

—— -- 아샷 마티니안

제가 지금 온라인 채팅 해요

Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors

Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors
Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors
Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors

큰 이미지 :  Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors

제품 상세 정보:
원래 장소: 광동, 중국
브랜드 이름: YUEXIANKE/OEM/ODM
인증: Unilever/ROSH/CE/ANATEL/CPR/ETL
모델 번호: CAT6
결제 및 배송 조건:
최소 주문 수량: 고객의 요구로서의 주가가 타입 30000 미터를 특화했습니다.
가격: Negotiation
포장 세부 사항: 1개 pc / 페이 가방, 폴리 백, 한 카톤 박스, 고객 요청에서 100-400pcs
배달 시간: 7-15 영업일
지불 조건: 서부 동맹, T/T, MoneyGram
공급 능력: 달 당 2000000000개 부분 / 부분

Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors

설명
관리인 :: 벌거벗은 구리 색 :: 검고 선택적입니다
포장되는 것 :: 1pcs/bag 길이 :: 1M/2M/3M/5M(customizable)
애플리케이션 :: 컴퓨터, 네트워크 재킷 :: PVC
관리인의 수 :: 8 차폐형 :: UTP
하이 라이트:

1 Gigabit RJ45 Lan Patch Cord

,

8 Conductors Lan Patch Cord

,

Customizable Network Lan Patch Cord

UTP Cat6 Pure Copper 1 Gigabit RJ45 Network Lan Patch Cable Cord

Product Description
1. Cat5: 100MHz Transmission frequency with high density and high quality insulation jacket. 2. Cat5e: Use for Ethernet 1000Mbps, less attenuation and ANEXT, Higher ratio of ACR and Structural Return Loss, less delay error.
3. CAT6: The most suitable for transmission rate higher than 1GBPS application. Improve the performance of ANEXT and return loss. Can provide twofold in broadband cat5e.
4. CAT6A: Performance Higher than CAT6, The final index reached 300 MHz bandwidth.

UTP: Small diameter save space, light weight, flexible, easy cabling, lower price.
FTP/STP: Reduce or eliminate ANEXT, independence and flexible, more strong flame retardant.

Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors 0
Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors 1Pure Copper 1 Gigabit RJ45 Network Lan Patch Cord 8 Conductors 2

Specifications
Performance Version
Regular Version

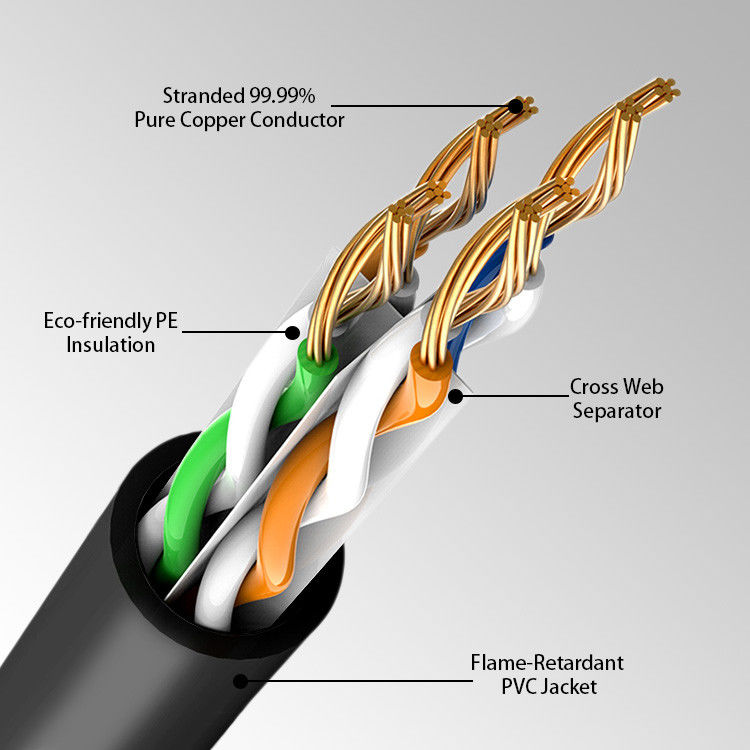

Conductor
24AWG
(Customizable)
24AWG
(Customizable)
Conductor Structure
Stranded
Stranded
Conductor Material
99.997% Bare Copper
CCA
Shield
Insulation
High Density Polyethylene (HDPE)
Color Code
• Pair 1: Blue-White/Blue
• Pair 2: Orange-White/Orange
• Pair 3: Green-White/Green
• Pair 4: Brown-White/Brown
Separator
Cross-web (High Density Polyethylene)
Rip Cord
Applied longitudinally under jacket
Jacket
Flame Resistant PVC (PE or LSZH)

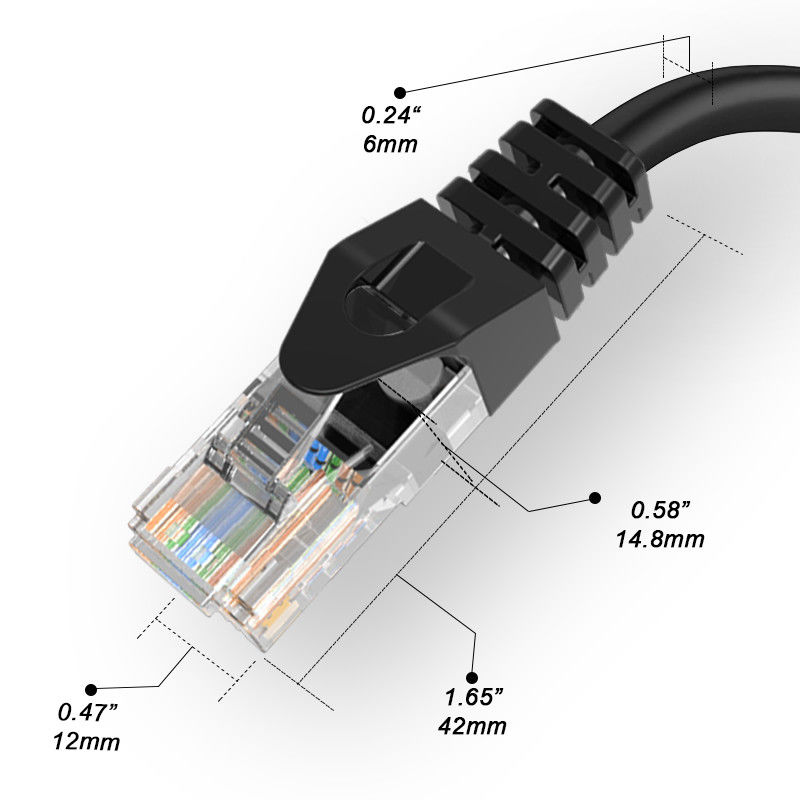

Connector
RJ45 UTP Gold-plated Contact
Conector Color
Colorless transparent or Blue transparent
Mold Design
Snagless Cable Boot or Non-snagless Cable Boot without tab
Flame Rate
CM (suitable for in-wall installation)
Color
Black, White, Gray, Blue
Maximum Pulling Force
20 KG
18KG
Function Distance
0-100m
0-50m
Temperature Rating (˚C)
Installation
Operation

0 to +60
-30-75
Bandwidth:
Average
Maximum

1 Gigabit
10 Gigabit (under 37m)

1 Gigabit
5 Gigabit (under 10m)
Frequency:
Average
Maxinum

0-250 MHz
0-550 MHz

0-250 MHz
0-350 MHz







Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliver our products by SEA. Other delivery methods are available upon request from clients.



NO.


GOODS NAME


SPEC.

PACKING/PCS
(QTY IN CARTON)
          Carton Dimension(CM)


UNIT.CBM
L
W
H
1
UTP CAT5E
PATCH CORD
0.5M
750
50
35
30
0.0525
2
1M
500
50
35
30
0.0525
3
3M
250
50
35
30
0.0525
4
5M
150
50
35
30
0.0525
5
7M
125
50
35
30
0.0525
6
10M
90
50
35
30
0.0525
1
UTP CAT6
PATCH CORD
0.5
560
50
35
30
0.0525
2
1
320
50
35
30
0.0525
3
3
150
50
35
30
0.0525
4
5
110
50
35
30
0.0525
5
7
90
50
35
30
0.0525
6
10
80
50
35
30
0.0525







Our service
1) Quick Response -- All inquiries will be replied within 24 hours.
Professional Quotation -- All pricing will be quote according to customers' detailed specifications & requirements.
2) OEM & ODM Service -- Can print your own brand on the cable printing with foot or meter marking. -- Make customized designs for stickers, drums, outer cartons, etc.
3) Stable Quality -- All materials and products passed restrict QC procedures, compliant with international standards.
4) Fast Delivery -- LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
5) Good After-sales Service -- We chose the fastest vessel to POD for delivery our goods to clients, -- All Documents will be issued according to clients' instructions, to save troubles from local customs. -- Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.







What is the process of an order?

Send your detailed request → Feedback with quotation → Confirm quotation and make payment → Make artwork for approval→Make mould→Mold testing→Making samples→Sample testing(Approval) →Mass production→Quality checking→Packing →Delivery →After Service→Repeat Order...











FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in dongguan city.

You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: May I buy samples from you?

A3: Yes! You are welcome to place sample order to test our superior quality and services.

Q4: What is your Warranty?

A4: All the products will have 12 months Warranty

Q5:What payment method do you accept?

A5:T/T(Bank transfer), , Money Gram, Paypal, etc.

Q6: Can you put my brand name (logo) on these products?

A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q7: May I know the status of my order?

A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q8: What’s the leading time? (How long do you need to prepare my goods?

A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

Q9: How will you deliver my goods to me?

A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q10: Can you provide us more other products to us to help us to save more shipping costs?

A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well.
